BG Series High-efficient Film Coating Machine

PRODUCT DESCRIPTION

1.Picture of machine

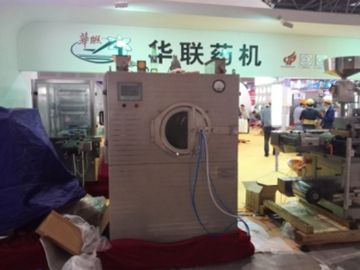

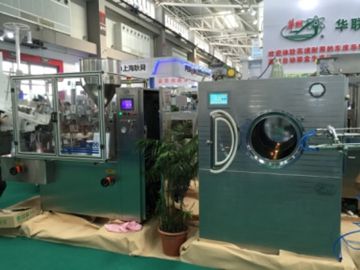

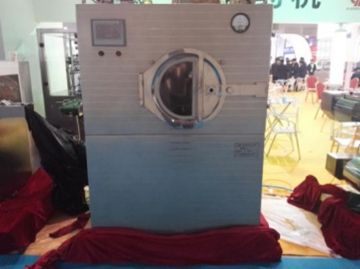

Exhibition

BG Series High-efficient Film Coating Machine

Exhibition

BG Series High-efficient Film Coating Machine

Exhibition

BG Series High-efficient Film Coating Machine

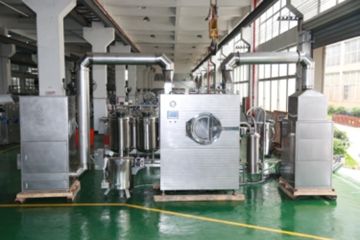

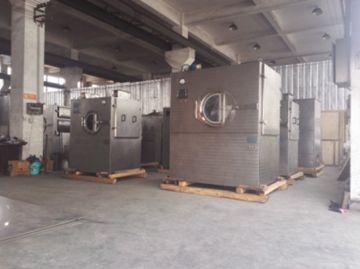

Workshop

BG Series High-efficient Film Coating Machine

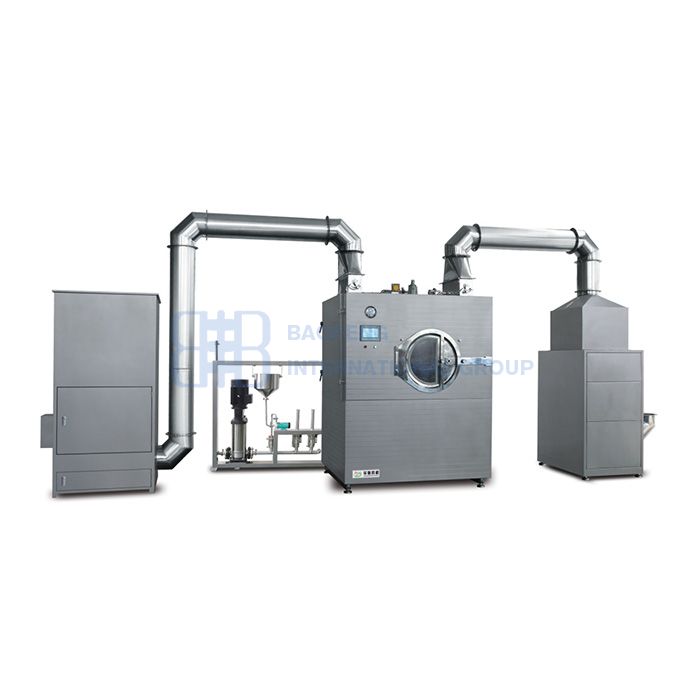

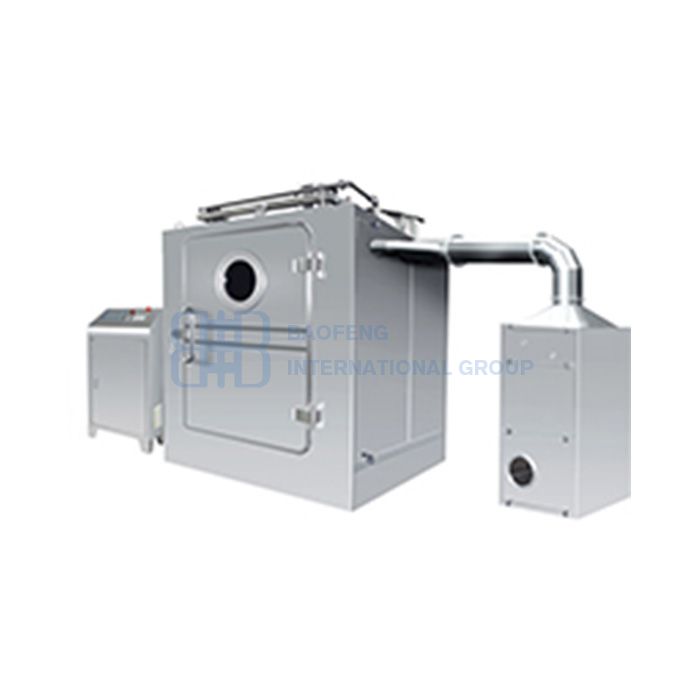

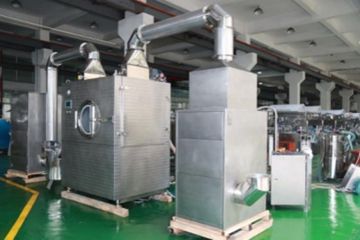

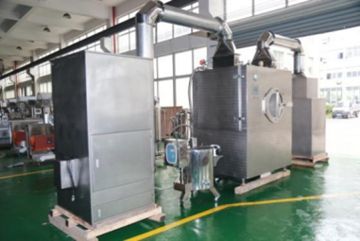

The whole set of BG

BG Series High-efficient Film Coating Machine

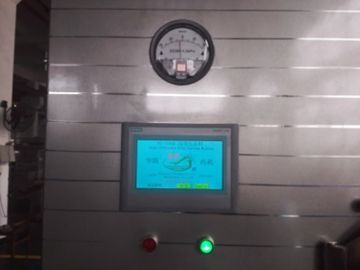

Touch screen

BG Series High-efficient Film Coating Machine

High efficient filtering anti-vibrating air heating blower

BG Series High-efficient Film Coating Machine

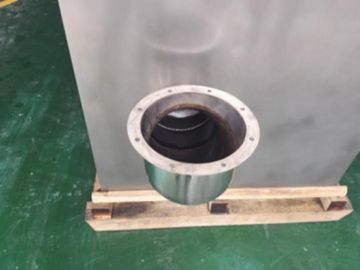

Air intake

BG Series High-efficient Film Coating Machine

Dust cleaning and anti-vibrating air exhauster

BG Series High-efficient Film Coating Machine

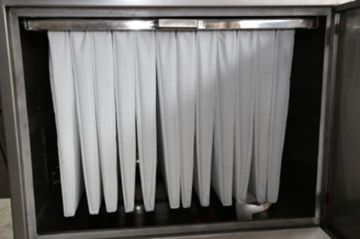

Inner structure of the dust cleaning and anti-vibrating air exhauster

BG Series High-efficient Film Coating Machine

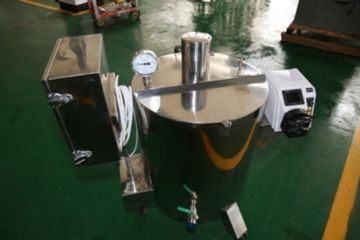

Coating liquid material agitation system and peristaltic pump

BG Series High-efficient Film Coating Machine

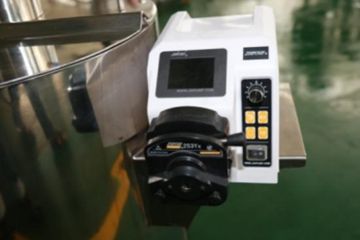

Peristaltic pump

BG Series High-efficient Film Coating Machine

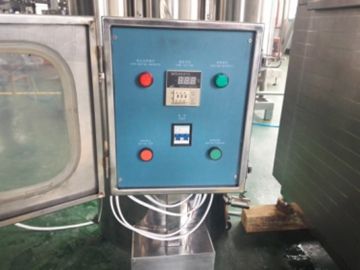

Control panel of the coating liquid material agitation system

BG Series High-efficient Film Coating Machine

Inner high speed agitation blade of the coating liquid material agitation system

BG Series High-efficient Film Coating Machine

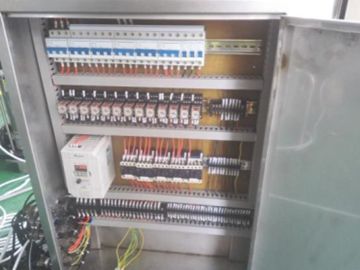

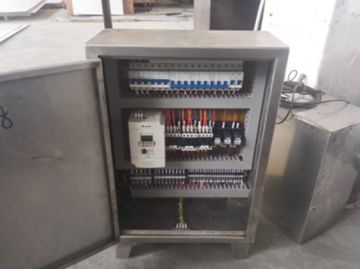

Independent electric cabinet

BG Series High-efficient Film Coating Machine

Electronic component

BG Series High-efficient Film Coating Machine

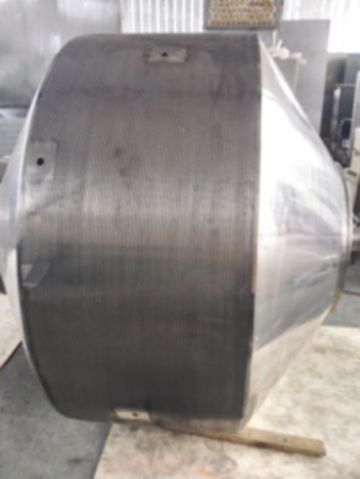

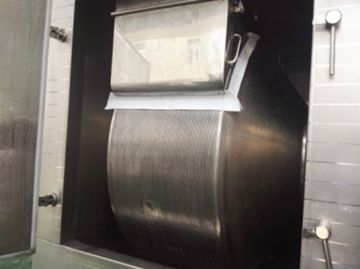

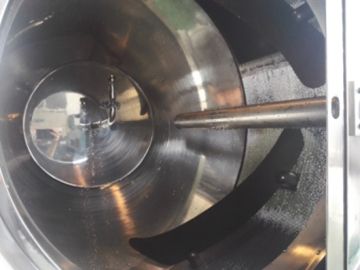

Inner vessel

BG Series High-efficient Film Coating Machine

Inner vessel

BG Series High-efficient Film Coating Machine

Inner vessel

BG Series High-efficient Film Coating Machine

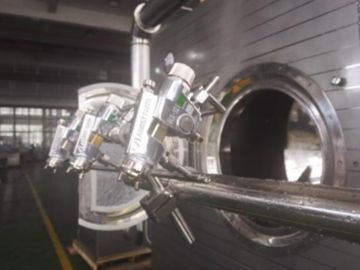

Spray gun for atomizing

BG Series High-efficient Film Coating Machine

Spray gun for atomizing

BG Series High-efficient Film Coating Machine

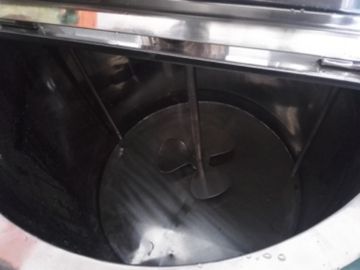

Agitation vessel with blades

BG Series High-efficient Film Coating Machine

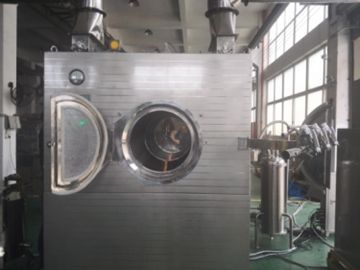

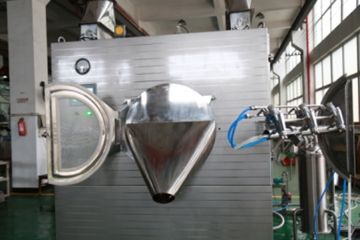

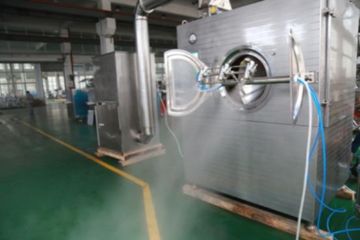

Product output

BG Series High-efficient Film Coating Machine

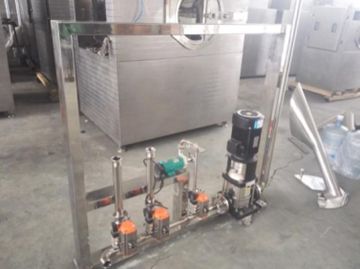

CIP cleaning device

BG Series High-efficient Film Coating Machine

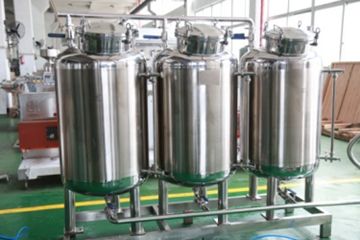

Customized tank for special solution like alkaline or acid liquid (optional)

BG Series High-efficient Film Coating Machine

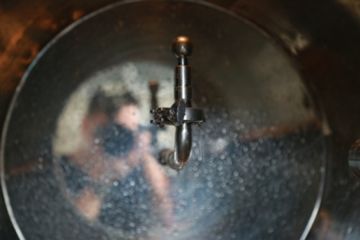

Inner cleaning nozzle

BG Series High-efficient Film Coating Machine


2.Picture of samples

BG Series High-efficient Film Coating MachineBG Series High-efficient Film Coating Machine
BG Series High-efficient Film Coating MachineBG Series High-efficient Film Coating Machine


3.Application

This machine is adopted with novel micro-computer PLC and temperature model control system, touching screen to display, ease of operation, high effocoemcy and saving energy, cleaning and safety, according with the requirement of GMP, it is widely used in pharmacy as well as foodstuff industry, and it is an ideal equipment for tablet, pill, candy, chocolate etc to make solvent film coating, organic film coating, sugar coating. The main machine is adopted with imported stainless steel to be made, with anti-explosion motor, frequency governor, with cleaning device, computer control, controllable program function, touching screen display.


4.Main technical parameter

ModelBG-400BG-150BG-80BG-40
Max capacity (kg)4001508040
Power of main machine (kw)32.21.51.1
Speed of roll (rpm)1-132-203-243-28
Weight of main machine (kg)1650900750550
Overall dimensions of main machine (L*W*H) mm2000*1680*25901750*1320*20201390*1050*17201180*850*1520
Power of high efficiency filtering air heater (kw)32.21.51.1
Overall dimensions of high efficiency filtering air heater (L*W*H) mm1100*910*25001080*820*2500950*800*2080810*700*1720
Weight of high efficiency filtering air heater (kg)450400350300
Power of dust cleaning air exhauster (kw)7.55.532.2
Overall dimension of dust cleaning air exhauster (L*W*H) mm1140*1140*25001060*1100*2100900*800*1900730*730*1660
Weight of dust cleaning air exhauster (kg)600500350300
Power of steam and electrothermal dual-purpose heat-insulating mixer (kw)4444


Usage:
The BGB-C Series High-efficiency Coating Machine is mainly used in pharmaceutical and food industries. It is a high-efficiency, energysaving, safe, clean and mechatronics equipment for coating tablets, pills and candies with organic film, water soluble film, slow and controlled release film and sugar film etc., which conforms to the requirement of GMP.

Working principle:
The tablet cores to be coated make continuous complicated orbital motion within the closed rotating drum under the action of a streamline guide plate. During the motion, coating medium automatically sprays according to the technological process and rational technological parameters, at the same time hot air is supplied under a negative pressure. The hot air penetrates through the tablet core layers and is discharged from the bottom of the layers, so that the coating medium sprayed on the surface of tablet cores will dry rapidly and evenly, thus forming a solid and smooth surface film.


Features:
•The control system consist of PLC and HMI, the design is reasonable and programming is flexible, which are adapt to the different needs of pharmaceutical technology, thus featuring reliable work, stable performance and conforming to the requirement of GMP.
•Under the action of the agitator of streamline guide plate, the tablet cores are tumbling smoothly and exchanging frequently, thus eliminating the phenomenon of tablet cores falling from a high place and the collide , so that solve the problems of broken pieces and chipped edge, and also improve the rate of finished products. The narrow surface of the guide plate eliminates the adhesion of coating material on its surface, thus saving the coating material and improving the quality of medicine.
•The peristaltic pump with constant pressure and variable eliminates the need for a return pipe. The turning radius of the drum varies with the pressure. The slurry output and the quantity of slurry sprayed are balanced automatically, thereby stabilizing the effect of atomization, simplifying the spray system, preventing the spray gun from plugging-up, and saving the coating material, moreover the cleaning is simple, without dead corner.
•The spray gun specially designed for the film coating machine with even atomization and large coverage of spraying. The universal adjustable spray head makes the cleaning mechanism of spray gun unaffected by charge quantity, so that film coating can proceed continuously, thus reducing the coating time and saving coating material.
•Control and display the negative pressure in coating pan.
•Control and display supply air speed.
•Control and display the temperature.
•Preventing the spray gun from plugging up.
•The memory and the print function
•The above function realized display and control of technical parameters, It can write SOP operation and guide the operation by quantitative index to guarantee the same quality of each batch, which completely conforms to the requirement of GMP.
