HSD Lab. Series Blender

The Usage:

It is mainly suitable for mixing between powder, particle or powder and particle dried by different components in the laboratory.It is an ideal model to explore the best process parameters of material mixing and an advanced experimental equipment for mechatronics.

PRODUCT DESCRIPTION

The principle:

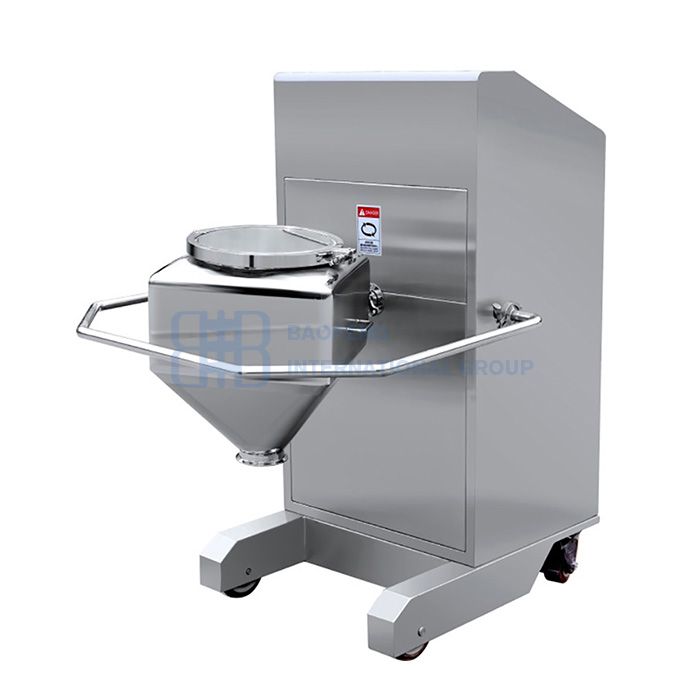

The HSD laboratory mixer is mounted on a mobile base.The main components include frame, rotary system, electrical control system, hopper and so on.Conical mixing hopper is mainly composed of bucket body, bucket cover, clamp, butterfly valve and so on.


The characteristic:

1. The mixing hopper is connected with the main machine by fast unloading, which is convenient for installation and disassembly.

2. Can be configured with different mixing hoppers, no need for frequent feeding, feeding and other procedures, to meet the needs of experimental testing.

3. PLC automatic control, automatic mixing, automatic positioning, humanized control operation.

4. The whole machine has no sanitary dead Angle, and the exposed material is made of high-quality austenitic stainless steel, which fully meets the GMP requirements of pharmaceutical production.


HSD Lab. Series Blender


HSD Lab. Series Blender

TAGS: Bin Blender
