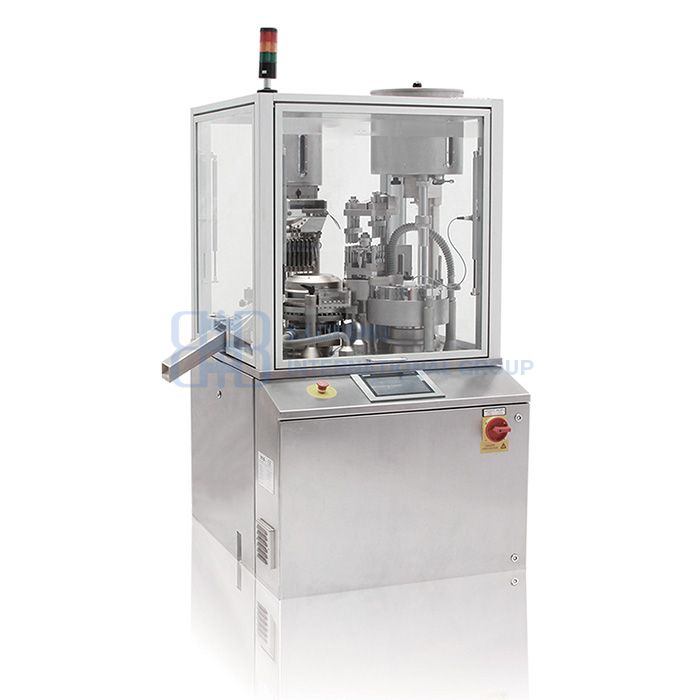

Z40 Capsule Filling Machine

Intended use

This machine is intended for filling hard-shell gelatin capsules with granulate, pills and micropellets, liquid, soft-gel capsules, It can realize maximum 2 kinds of dugs mix filling, Dosator Type,  The encapsulation machine complies with the GMP requirements.

PRODUCT DESCRIPTION

Operation principle

The Dosator type encapsulation machine automatically orients capsules and sequentially performs the following operations with capsules: feeding, opening, prepacking, rejecting unopened capsules, closing and discharging.


Composition of the Machine

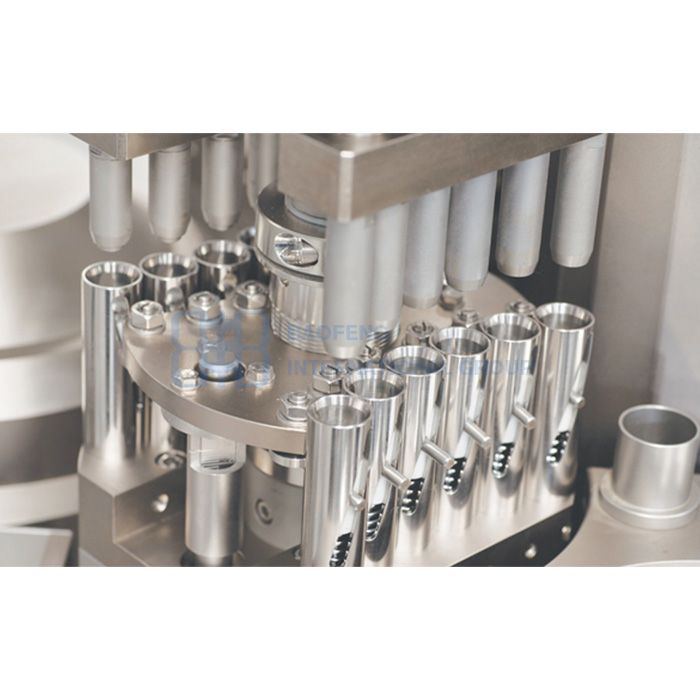

The machine consists of the main rotor, the feeding system for empty capsules, the system for feeding and dispensing granulate, the control system.


Materials used

The machine body surface: stainless steel 304.

The parts in contact with the filled material ( hopper, scrapers, tanker,tanker cover,tube,piston): 304or 316L, conform with the contract request and FDA request.


Z40 Machine Parameters

No.DescriptionUnitsDataNote
1Equipment
Z40
2Maximum Productive CapacityCap/h40,000 gra. /hour
3Max. Revolving Speedr/min111 round/ min
4Type of size change parts
000#-5#
5Drug
Powder
6PowderKW10KW
7Air Compress Flowl/min100 l/min6Bar
8NoisedB70Bb
9WeightKG1,000

Aspirator
10Type
CFM-3151
11Working PowerV380V
12Motor PowerKW2.2Kw
13Air Volumel/min3,850 l/min2,500mm H2O
14NoisedB65Db

Vacuum Pump Parameter
15Type
Becker
16Working PowerV380V
17PowerKW2.2KW
18Flowm^3/h100 m^3/h
19NoisedB65 dB
