Tablet Press Machine

PRODUCT DESCRIPTION

Tabletpress Machine Technical Parameter

Technical Parameter

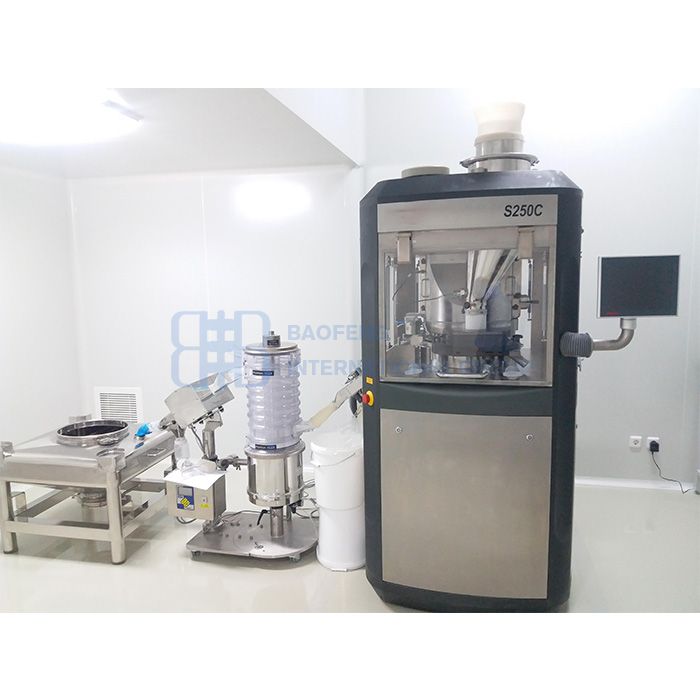

	S250C
No. of press stations	44	40		32	26
Tool Type	EU-B/IPT-B				EU-D/IPT-D
Die Type	BBS	BB		B	D
Maximum tablet Diameter(mm)	11	13		16	24	25
Maximum die filling (mm)	16				20
Maximum tablet thickness (mm)	10
Maximum output (tablets/hour)	300,000		270,000	220,000	180,000	175,000
Compactions force Max. (KN)	80				100
Standard Electrical Connection (V)	400 V (±10%) - 50/60 Hz
Maximum installed power (KW)	8
Machine weight (kg)	2800

1. Equipped Items:

√ Prepared for changeable turret.

√ Without Hand wheel, free operation of the machine.

√ 12" Colour Touch Screen for input and display of all machine settings.

√ Full text indication of fault messages.

√ Main pressure lever, equipped with wire strain gauge.

√ Lower punch tightness control with proximity switch.

√ Lubrication of punch guiding machine parts with automatic pressure controlled central lubrication pump.

√Upper punch tightness control with wire strain gauge.

√ Ejection cam with changeable wear plate.

√ Pre and main pressure adjustable independently.

√ Sorting gate for reject tablets in discharge chute during machine start and stop.

√Upper punch shaft bores with oil scraper rings.

√ Lower punch shaft bores with oil scraper rings.

√ Keyed upper punch bores.

√Two fill cams.

√ Upper punch area covered with stainless steel cover.

√ All around dust extraction in demountable segments.

√ Ventilation of the pressing compartment with silencer to minimise noise emission.

√ Force feeder FIIc with drive underneath, closed execution with quick release, two paddle wheels with flat pins for compression of granules.

√ Frequency controlled A/C motor with 4,0 kW capacity.

√ Paint free execution of all with product contact machine parts.

√ Housing in stainless steel AISI 304.

√ Machine base plate elevated 100 mm from floor in order to simplify cleaning and transport (covered).

√ Sockets for vacuum, air pressure and electric connections mounted onthe rear side of the machine.

√ print batch end report

√ display of individual main compression forces

√ product administration

√ missing punches

√ automatic log off from HMI

√ password protection

√ audit trail messages including print out

√ Fat protocol

√ IQ, OQ (only documents) Only in German and English language available

2. Electrical execution

√ According to GAMP guidelines

√ Integrated control cabinet for the complete electrical- electronic control of the machine with plug sockets.

√ Electrical installation created for 400 V, 3-Phase, 50 Hz

√ Other voltage and frequency available as option.

√ Control voltage from built-in transformer 230/24V AC-DC.

√ Total power supply approx. 8.0 kW.

√ Electrical installation according to VDE-Guidelines.

The quoted object is not built in an explosion proof execution, unless there is a written agreement over the same (including the applying prices).
