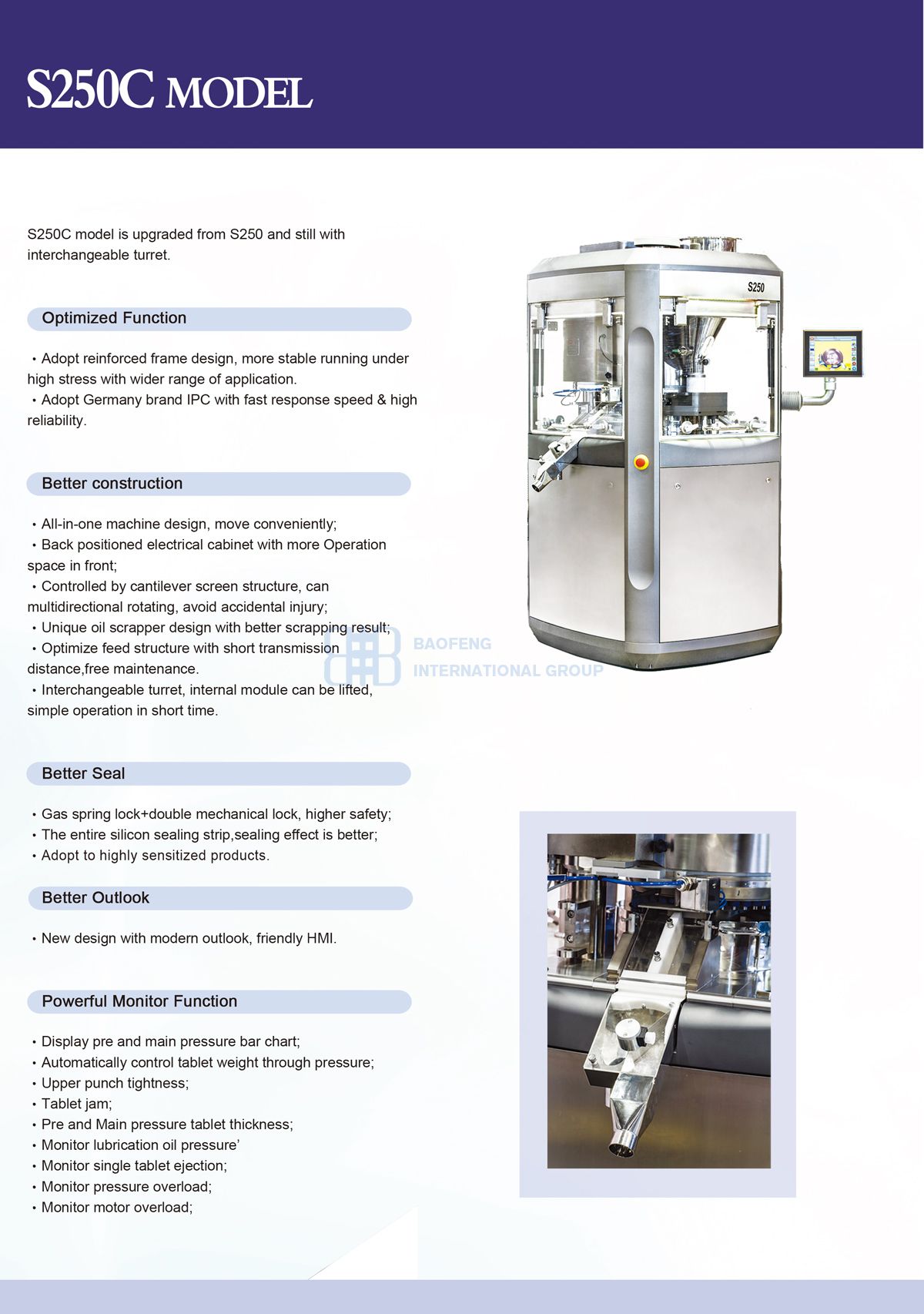

S250C model is upgraded from S250 and still with interchangeable turret.
Optimized Function
Adopt reinforced frame design, more stable running under high stress with wider range of application.
Adopt Germany brand IPC with fast response speed & high ellblit.y
PRODUCT DESCRIPTION
Summary of Technical Parameter
| Technical Parameter | ||||||
| S250C | ||||||
| No. of press stations | 44 | 40 | 32 | 26 | ||
| Tool Type | EU-B/IPT-B | EU-D/IPT-D | ||||
| Die Type | BBS | BB | B | D | ||
| Maximum tablet Diameter(mm) | 11 | 13 | 16 | 24 | 25 | |
| Maximum die filling (mm) | 16 | 20 | ||||
| Maximum tablet thickness (mm) | 10 | |||||
| Maximum output (tablets/hour) | 300,000 | 270,000 | 220,000 | 180,000 | 175,000 | |
| Compactions force Max. (KN) | 80 | 100 | ||||
| Standard Electrical Connection (V) | 400 V (±10%) - 50/60 Hz | |||||
| Maximum installed power (KW) | 8 | |||||
| Machine weight (kg) | 2800 | |||||
Better construction
Al-in-one machine design, move conveniently
Back positioned electrical cabinet with more Operation space in front
Contolled by cantilever screen structure, can multidirectional rotating, avoid accidental injury
Unique oil scrapper design with better scrapping result
Optimize feed structure with short transmission distance free maintenance
Interchangeable turret, internal module can be lifted, simple operation in short time
Better Seal
Gas spring lock+double mechanical lock, higher safety
The entire silion sealing strip , sealing eflect is better
Adopt to highly sensilized products
Better Outlook
New design with modem outlook, friendly HMI
Powerful Monitor Function
Display pre and main pressure bar chart
Automatically control tablet weight through pressure
Upper punch tightness
Tablet jam
Pre and Main pressure tablet thickness
Monitor lubrication oil pressure
Monitor single tablet ejection
Monitor pressure overload
Monitor motor overload
