Con- Mill with Lifter Column

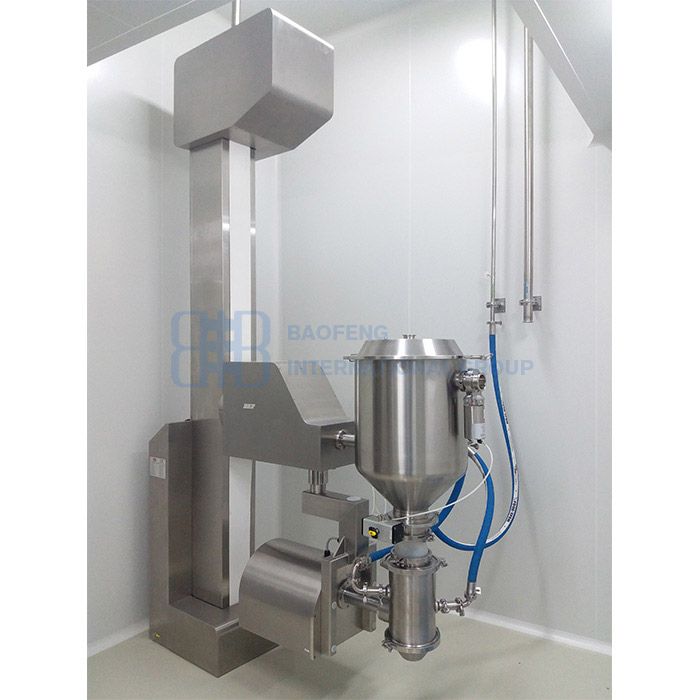

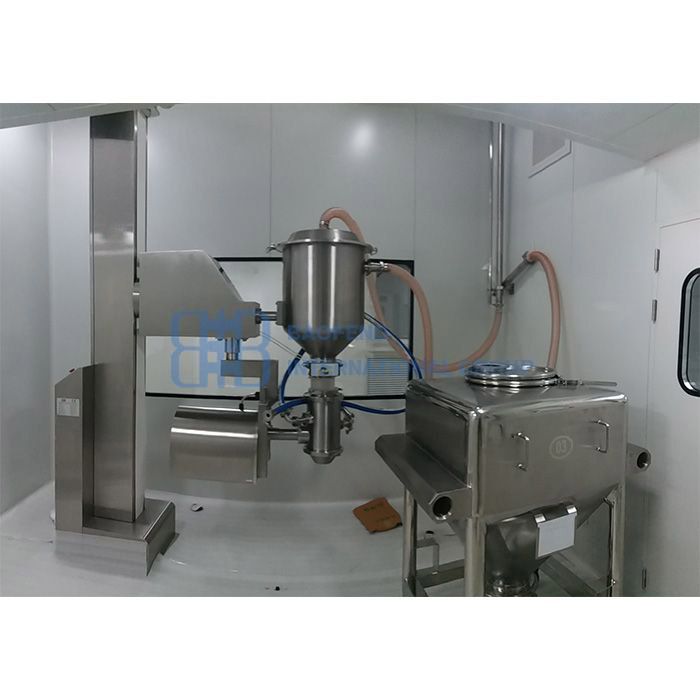

Con-mill fixed on the lifter 3400-4300mm height;

Can be manual rotoated for connected with powder tank

Powder tank 100L, with powder level check

Mill motor 3.0KW, barnd ABB

Screen insert with round holes0.5 mm,0.8 mm, 1 mm, 1.2mm, 1.5 mm and 2.0 mm

PRODUCT DESCRIPTION

A set of shims to adjust the clearance between the rotor and screen (between a minimum clearance of 0.5 mm and a maximum clearance of 3.0 mm) is supplied.

The rotor serves to accelerate and guide the product towards the screen. In addition a mixing is achieved by the rotation of the rotor. Different shapes of the rotor impeller bars are available to adjust to individual processing requirements.


Technical data sheet

The below given technical data (especially weight and measurement indications) is issued for the sole purpose of giving an approximate value, unless it is expressly referred to as binding in the order confirmation.


General technical data

Operation voltage: 3 x 380 V AC

Frequency: 50 Hz

Degree of protection: IP55

Noise level < 80 dB (A)

Language notice/warning signs: Russian


Operation range of the unit

Throughput performance: 100 – 1500 kg/h (depends on product)


Rotor speed 0 – 1000 rpm

Materials/Surface finish

Product contacting parts: Material: stainless steel AISI 316L/1.4404

Surface: polished

Surface roughness: Ra < 0.5 µm


Outer material parts: Material: stainless steel AISI 304/ 1.4301

Surface: grounded

Surface roughness: Ra < 1.2 µm

Gaskets and other non-metal parts: pharmaceutical grade synthetic material


Energies and connections on site


Operation voltage

Operation voltage: 3 x 380 V AC

Frequency: 50 Hz

Power consumption: 6kW
