Home / Products / Pharmaceutical Equipments / Lifting Column / NTD Series Lifting Column

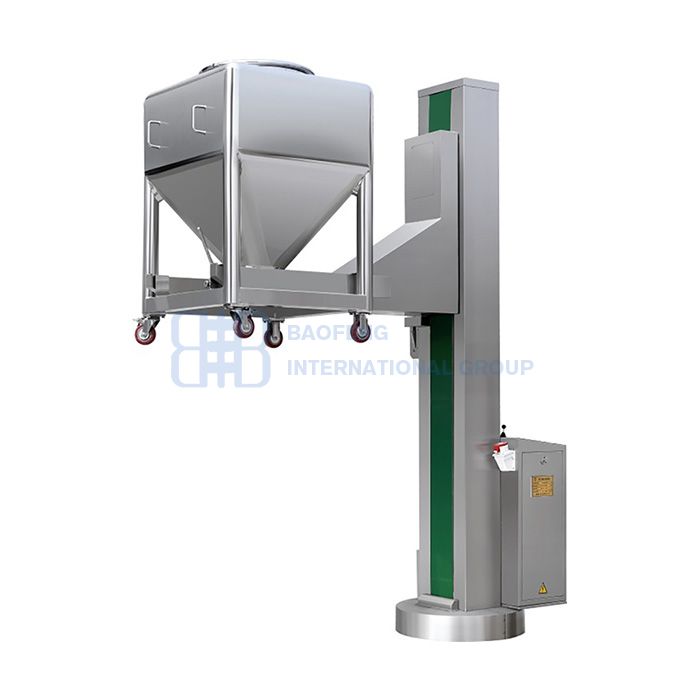

NTD Series Lifting Column

The usage:

This machine is mainly used for conveying and feeding solid materials in pharmaceutical industry. It can be used with mixing machine, tablet press, capsule filling machine and other equipment. At the same time in the pharmaceutical, chemical, food and other industries widely used.

PRODUCT DESCRIPTION

The principle:

The machine is mainly composed of chassis, column, lifting system and other components. When working, first push the hopper containing materials into the fork frame of the hopper elevator, then start the lifting button, and the hopper does lifting movement. After the hopper is in place, turn the chassis and the feeding equipment to be airtight docking, and open the butterfly valve of discharging, so that the material can be airtight transferred to the next process.


The characteristics:

This machine is our company widely absorbs, digesting the foreign advanced technology, combines the national conditions to develop the successful new model. Reasonable structure, stable performance, easy operation, no dead Angle, no exposed screw. The machine is easy to clean, effectively control dust and cross pollution, optimize the production process, fully meet the GMP requirements of drug production.


NTD Series Lifting Column


NTD Series Lifting Column
