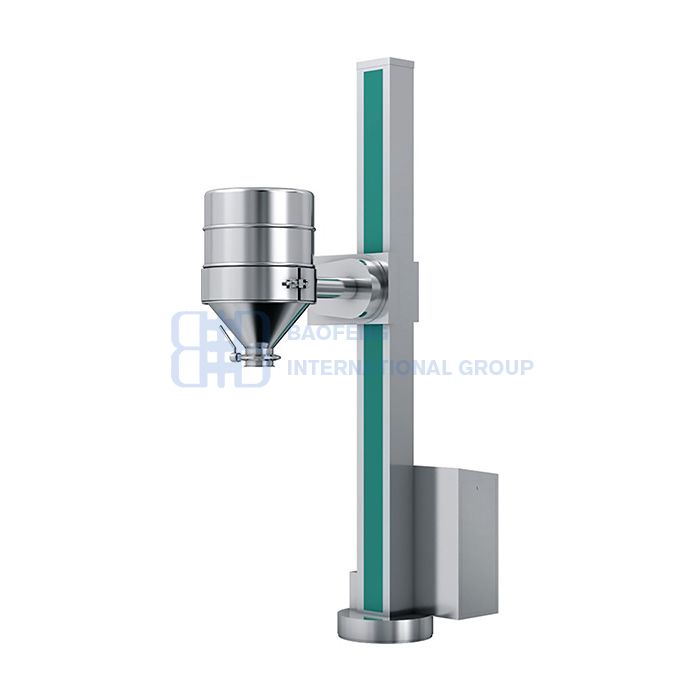

NTB Series Lifting Column

The usage:

This machine is mainly used for conveying and feeding solid materials in pharmaceutical industry. It can be used with mixer, tablet pressing machine, coating machine, capsule filling machine and other equipment. At the same time in chemical, food and other industries widely used.


The principle:

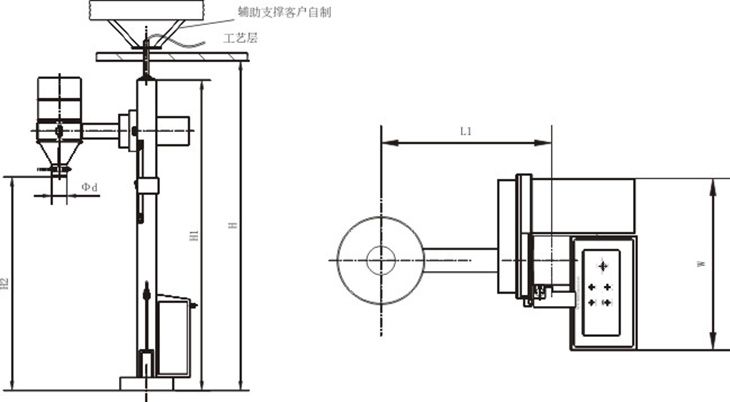

The machine is mainly composed of rotary chassis, column, lifting system and tilting system. When working, first buckle the material bucket with the lifting machine clasp, then start the lifting button to lift the material bucket; When the handle is turned over, the barrel can be turned 180°. Turn the connection between the column and the feeding equipment, open the discharging butterfly valve, and transfer the material to the next working equipment.

The characteristics:

The matrix shell is made of high-quality austenitic stainless steel, with no sanitary dead Angle, no convex or concave, reasonable structure, stable performance, optimized production technology, no dust and leakage during working, effectively controlling dust and cross pollution.

NTB Series Lifting Column

NTB Series Lifting Column
