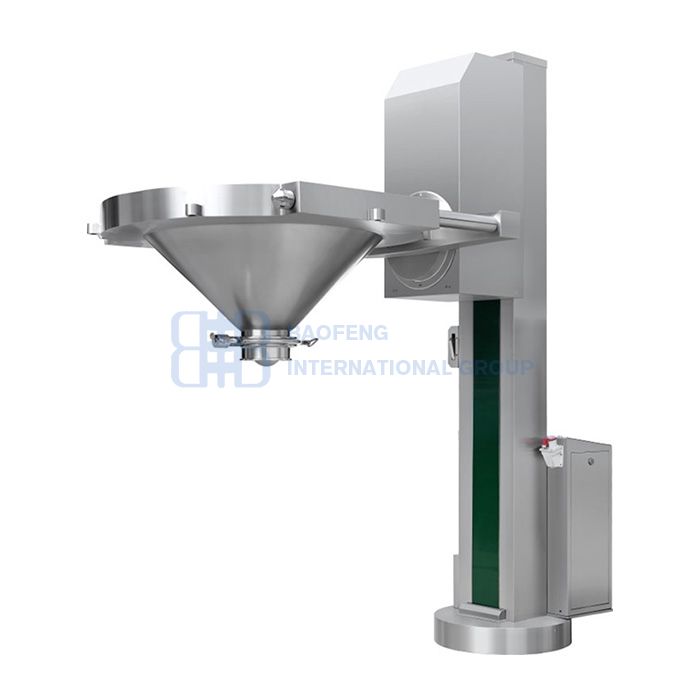

NTF Series Lifting Column

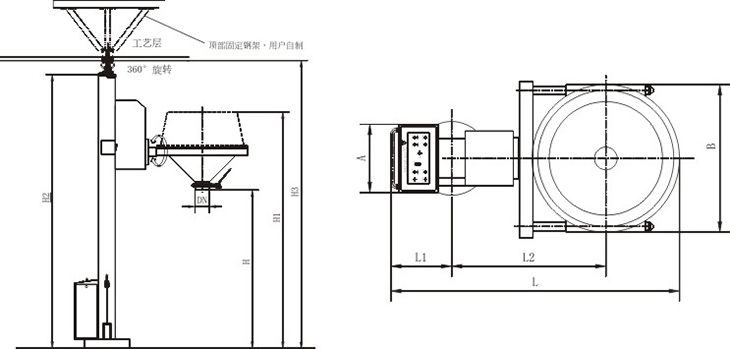

The principle:

The machine is mainly composed of chassis, column, lifting system and tilting system.During operation, the conical hopper is closed with the hopper of the boiling dryer.Start lifting button, bin lifting;Start the flip button, the silo can turn 180° and release the brake, rotate the column horizontally to the required position, then drop the silo to the working height, open the butterfly valve, and transfer the material to the next process.

The characteristics:

This machine is our company widely absorbs, digesting the foreign advanced technology, combines the national conditions to develop the successful new model.Reasonable structure, stable performance, easy operation, no dead Angle, no exposed screw.This machine is equipped with a mis-operating device, discharging disc valve, easy to disassemble, easy to clean, ensure the safety of production, and can effectively control dust and cross pollution, optimize the production process, fully meet the GMP requirements of drug production.
