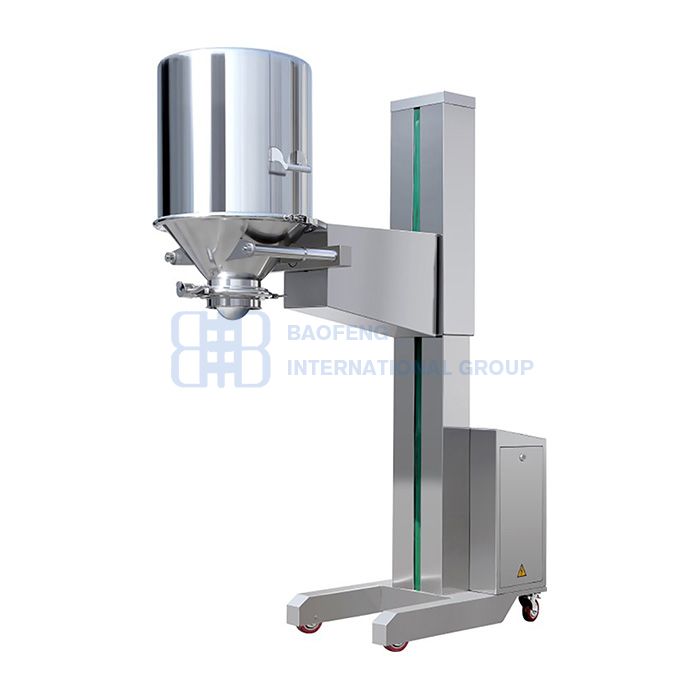

NTS Series Lifting Column

The Usage:

This machine is mainly used for conveying and feeding solid materials in pharmaceutical industry. It can be used with mixing machine, whole granule machine, tablet pressing machine, coating machine, capsule filling machine and other equipment.At the same time in the pharmaceutical, chemical, food and other industries widely used.

PRODUCT DESCRIPTION

The principle:

This machine is mainly composed of chassis trolley, telescopic system, lifting system, reversing system and so on. When working, first buckle the cone bucket with the material bucket, and then start the lifting button to lift the material bucket; Start the flip button, the barrel can be turned 180° to move the chassis trolley and the feeding equipment to the closed docking, open the butterfly valve of the discharge, so that the material can be transferred to the next process.


The characteristics:

This machine is our company widely absorbs, digesting the foreign advanced technology, combines the national conditions to develop the successful new model.Reasonable structure, stable performance, easy operation, no dead Angle, no exposed screw.This machine is equipped with a mis-operating device, discharging disc valve, easy to disassemble, easy to clean, ensure the safety of production, and can effectively control dust and cross pollution, optimize the production process, fully meet the GMP requirements of drug production.


NTS Series Lifting Column


NTS Series Lifting Column
